PCB Fixture Cleaning Machine-Stencil Cleaning Machine,SMTfly-5100 Cleaning Fixture Comparison:
| Condenser cleaning | Manual or ultrasonic cleaning | Comparing results |
| Automatic cleaning,100% safe | Charged cleaning or artificial iron brush cleaning+solution,poor
safety | ≥ |
| Batch cleaning,fast and efficient | Cleaning time is long,low efficiency | ≥ |
| One-touch operation,no need to special cleaning staff | Iron brush fixture,dirty,tired,need special cleaning personal | ≥ |
| Up and down,around the full range of cleaning,cleaning
thoroughly,high cleanliness | Condenser on the dead ends,the surface dirty cleaning difficult | ≥ |
| Solution cycle repeated repeated use | High Cleaning costs | ≥ |
| Spay cleaning and rinsing,governance well intact | Iron brush cleaning will be raised,the surface off the
phenomenon,the impact of follow-up product quality |
≥ |
| Cleaning +rinse+dry,after cleaning the surface without solvent | No rinse,after cleaning solvent residue,after the use of heat when
the smell out after the smell out |
≥ |

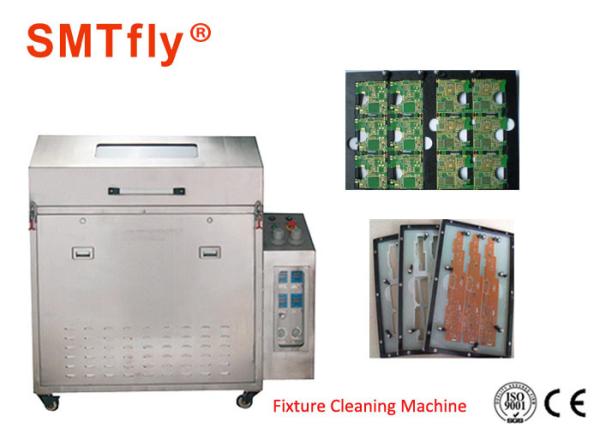

PCB Fixture Cleaning Machine-Stencil Cleaning Machine,SMTfly-5100
Specification:
| Cleaning basket size | 1000*200(H)mm Special size need to be customized |
| Cleaning fluid capacity | 80L(Max) |
| Rinse fluid capacity | 80L(Max) |
| Cleaning method | Spray rotary cleaning and rinsing |
| Dry way | Compressed air dry |
| Recommended cleaning time | 3-15mins |
| Recommended rinse time | 1-2mins |
| Recommended drying time | 3-6mins |
| Cleaning filter | Using 3-level filtration |
| Class 1 filter | 2mm(Filter debris) |
| Class 2,3 filters | 100um/20um(Filter flux, rosin and so on) |
| Blower | 3.7KW Heated to 80° |
| Diaphragm pump | 1 inch diaphragm pump (pumping, drainage) |
| Air supply | 0.5Mpa~ 0.7Mpa,600-800L/min |
| Air consumption | 800-1000L/min |
| Outlet size | Φ130mm(W)×60mm(H) |
| Dimension | 1550(L) ×1780mm(W) ×1730mm(H) |
| Recommended cleaning and drying time | 2-3mins |
PCB Fixture Cleaning Machine-Stencil Cleaning Machine Cleaning Basket:
Place the cleaning fixture to be cleaned, rinse, rinse, dry
rotation automatically, 1m diameter cleaning basket, can be placed
more than one piece of fixture, to achieve batch cleaning
Pump Cleaning pump/rinse pump/blower:
High-quality, high-flow electric pump and pneumatic pump,theoutput
pressure, high flow god cleaning effect
High-power, high-flow blower, to ensure that drying effect, improve
drying speed.
PCB Fixture Cleaning Machine-Stencil Cleaning Machine,SMTfly-5100
Description:
CW-5100 is my company independent research and development,
production of high-precision cleaning equipment, mainly for SMT
furnace governance, back to the furnace condenser, filter, wave
soldering chain, jaws and other regular cleaning; the current large
customers are: Quanta Computer, Wistron Capital, China-computer,
Brazil Xierkang, Panasonic electronic parts and so on.
If you're interested in the machine,please let us know,we'll try
our best to help you.
