The Improvement of the Third Generation of New PCBA Cleaning
Machine:
Rotation axis in the cleaning room:Cleaning room rotating shaft to change the structure and material,
get rid of the previous industry PCBA washing machine rotary shaft
easy to wear a common problem, every 6 to 12 months to replace the
defect, the new rotation shaft mechanism without replacement.
Cleaning chamber, middle and lower spray bar pressure monitoring:Cleaning room, the middle and the next three spray bar pressure
display and monitoring, can be adjusted independently,
corresponding to most of the customer before the pressure control
to improve the requirements. Cleaning basket up and down 2 layers
can be placed different PCBA, adjustable spray bar pressure to
correspond. When the 2-layer cleaning basket is only placed on a
layer of PCBA cleaning, you can also close one of the spray bar.
Software improvement:Function more powerful, especially the machine alarm and error
indication function, so that customers can use the process
according to the instructions to troubleshoot.
Shape and size:Optimize the appearance of the machine and the key arrangement,
more beautiful. Smaller size, less space:1300x1200x1850mm(LxWxH).
Electrical configuration:According to the domestic manufacturers and export requirements
matching: All the electrical components used: Mitsubishi,
Schneider, CKD, Omron and other well-known brands.
Stencil Cleaning System-Cleaning Machine Cleaner Equipment
Ultrasonic:

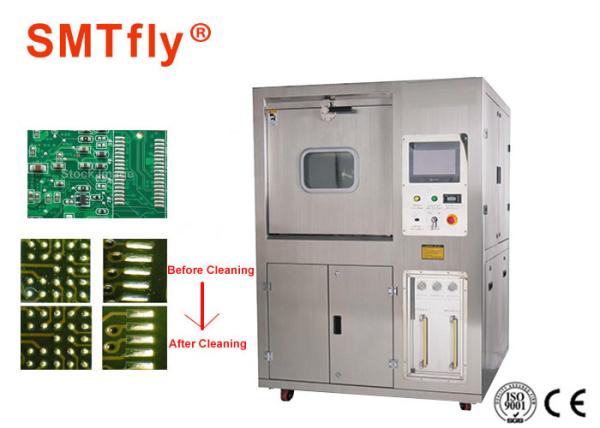

CW-5600 Offline automatic PCBA cleaning machine is an integration
of high-end cleaning machine,with energy-saving environmental
protection, bulk cleaning, it can complete the cleaning, rinsing,
drying function automatically .
Mainly used for aviation, aerospace, medical, new energy,
automotive electronics and other industries high-end products,
multi-species, small and medium-sized PCBA board cleaning ,it can
effectively clean the SMT/THT PCBA after welding the surface of the
residual rosin flux, water-soluble flux, no-clean flux / solder
paste and other organic and inorganic pollutants.
Stencil Cleaning System-Cleaning Machine Cleaner Equipment
Ultrasonic Specification:
| Content | Parameter |
| Cleaning area size: | 610mm(L)*560mm(W)*160mm(H) 2 layers |
| Concentration tank capacity: | 40L |
| Dilution tank capacity: | 60L |
| Spray tank capacity: | 18L |
| Spray tank heater power: | 6KW |
| Cleaning time: | 0~99 Min (adjustable) |
| Cleaning temperature (liquid): | room temperature -75 ℃ (adjustable) |
| Rinse time: | 1 min/ time (1-59 times / adjustable) |
| Rinse temperature (DI water): | room temperature -75 degrees(adjustable) |
| Drying time: | 0~99 Min (adjustable) |
| Resistivity meter monitoring range: | 0~18MΩ |
| Solvent tank heater power: | 9KW |
| content | parameter |
| Drying temperature: | room temperature - 99 ℃(adjustable) |

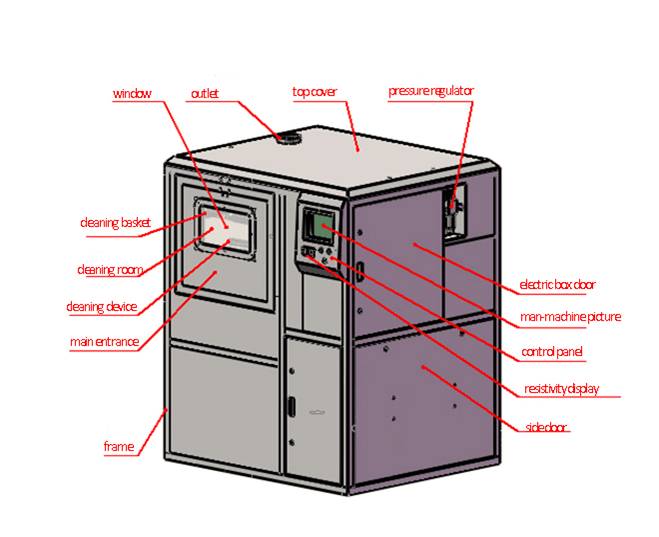

PCB Industry Precision Cleaning Auxiliary Equipment Connection
Diagram:
Instructions of SMTfly-5600 PCBA Cleaning Basket:
PCB Industry Precision Cleaning Operation, Cleaning, Control:
The use of stable and reliable imported brand color touch screen +
PLC control, one-button mode of operation, cleaning objects are
easy to load, and in the same cleaning room to complete the
cleaning, rinsing, drying process , To avoid frequent loading or
transfer of objects to be cleaned, so in the object cleaning
process does not require manual repeated to move, greatly reduce
the labor intensity, to achieve advanced technology to better serve
the purpose of all walks of life.
Stencil Cleaning System-Cleaning Machine Cleaner Equipment Sample:
